คำอธิบาย

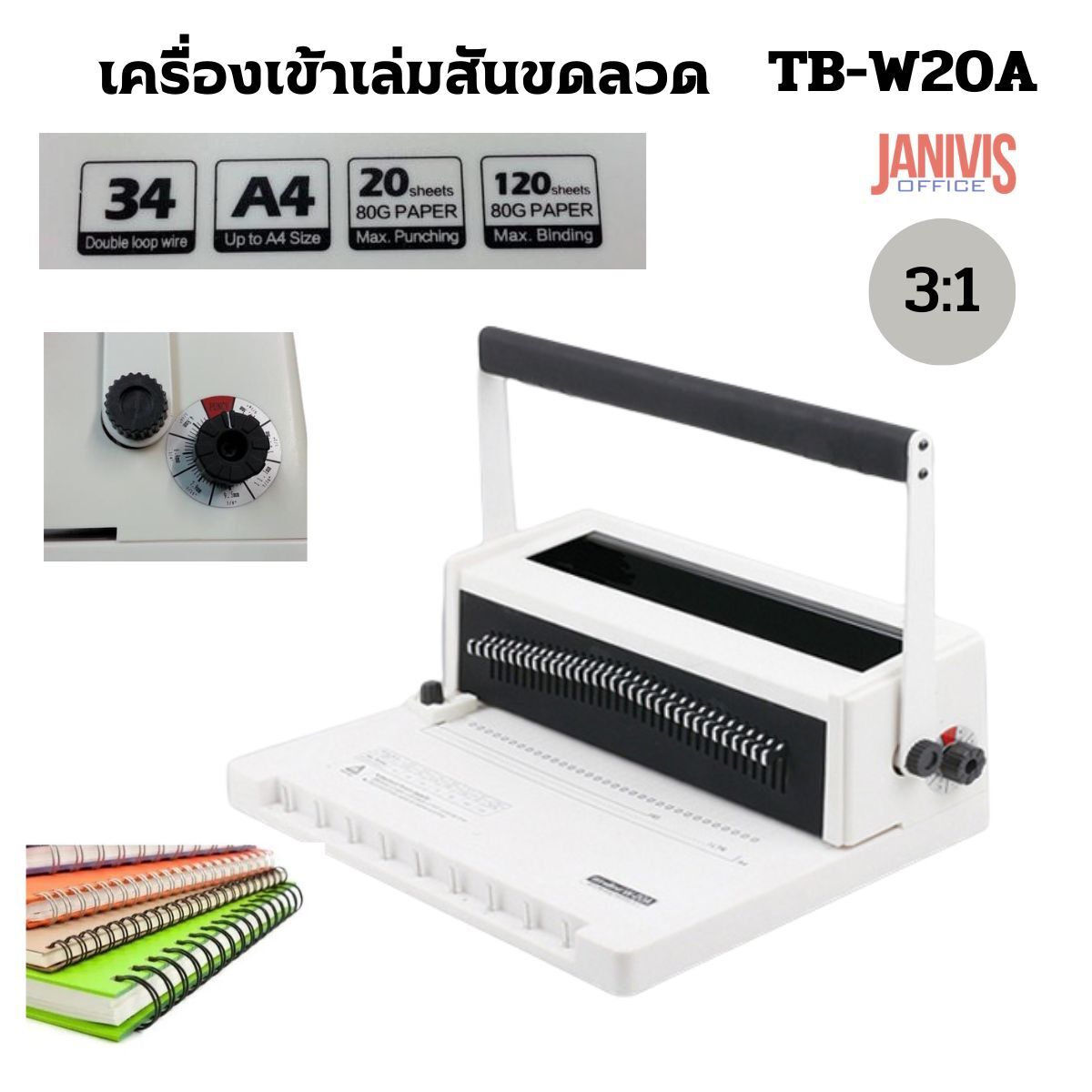

Maximum 20 sheets (80g paper) per manual punch;
Maximum Binding Capacity: 120 sheets (80g paper);
Max. Binding Width: Below 300mm;

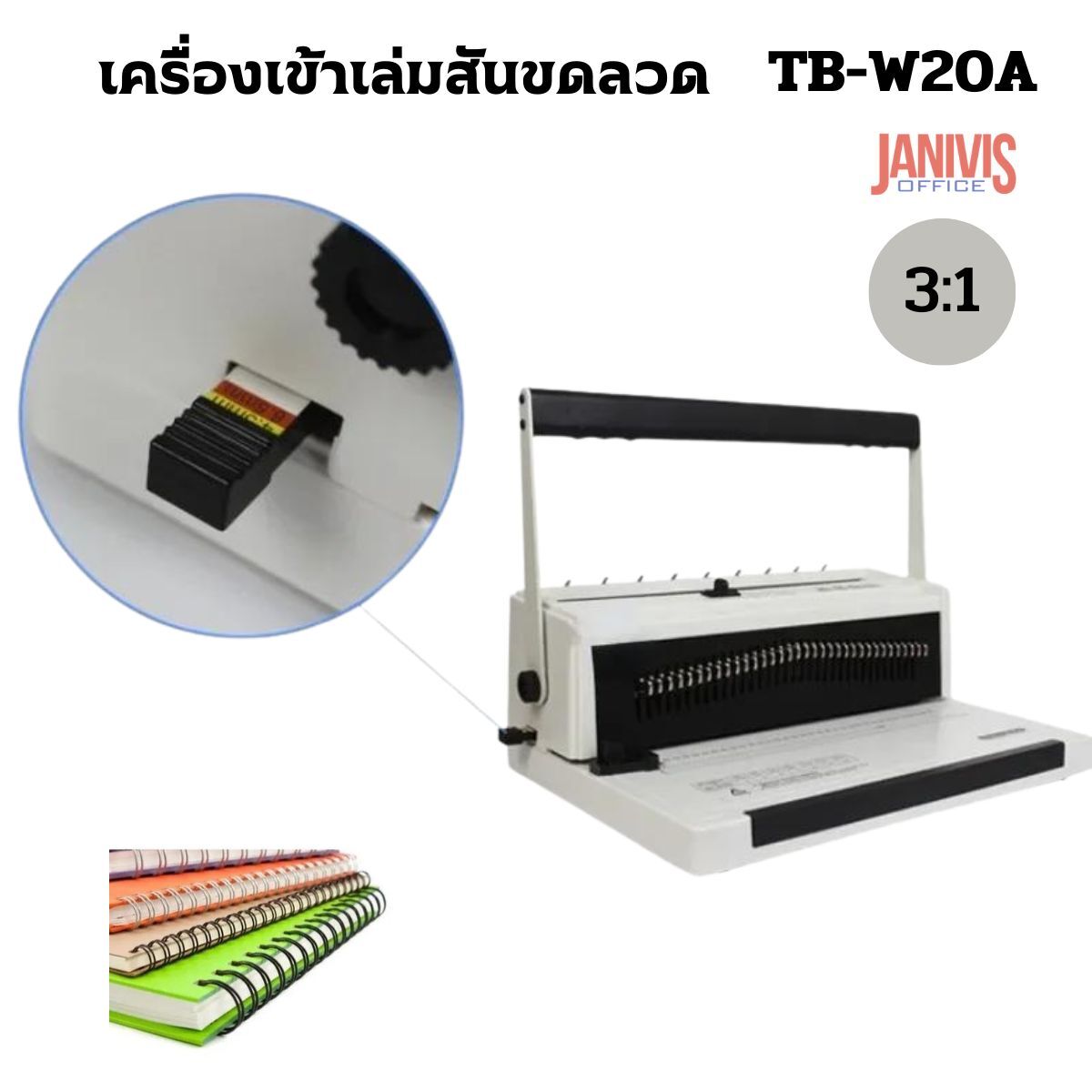

Adjustable Margin: 2.5, 4.5, 6.5mm;
Hole pitch NO.4 40pin NO.5(40pin)
Quantity of Movable Cutter : all
Hole Distance: 8.47mm
Size of Machine:435x335x205mm;
Net Weight: 6.7kgs;
Package: 2pcs/ctn;
G.W. : 16kgs;
N.W. : 14kgs;
Outer Carton Measurement :455x430x355mm

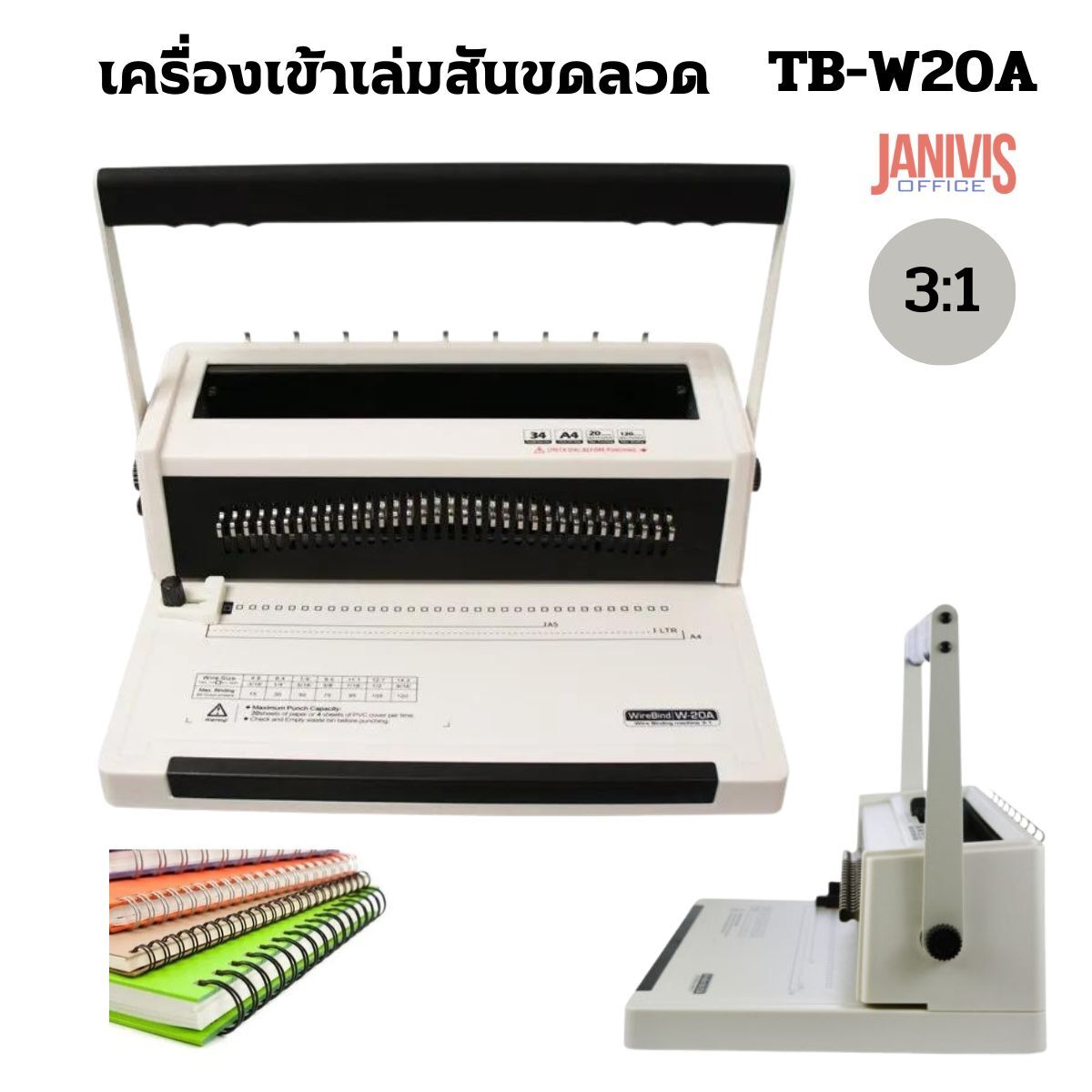

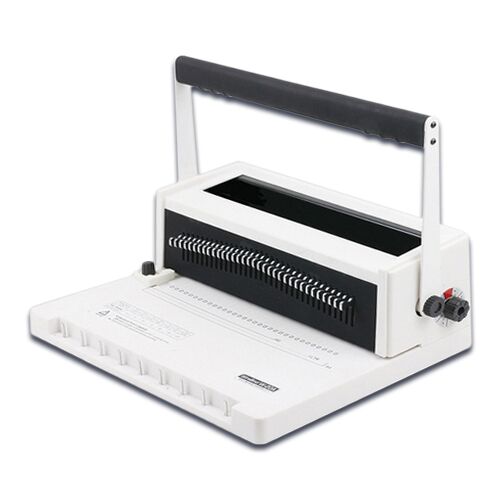

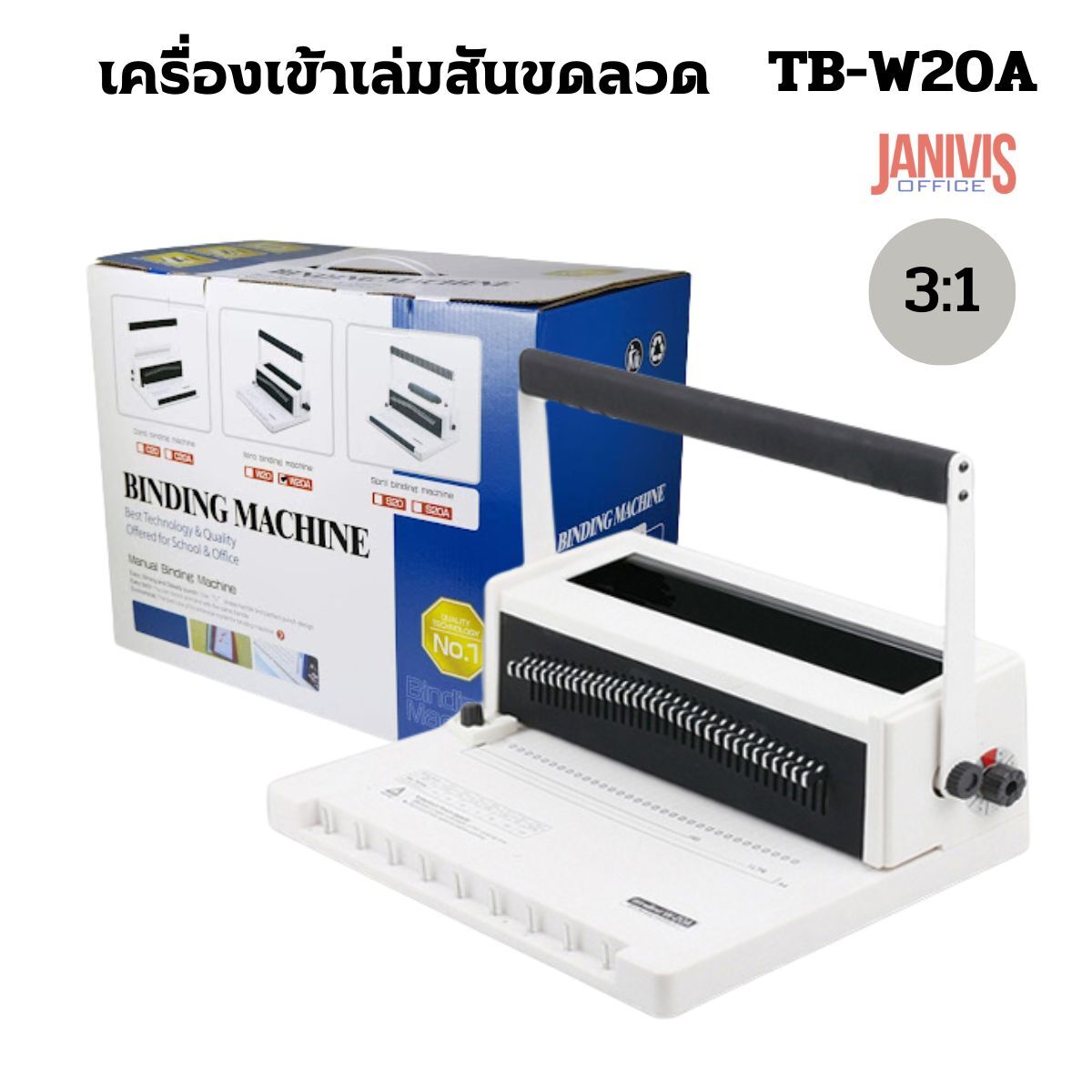

| Model | TB-W20A |
| Operation: | Manual |
| Pitch: | 3:1 Wire |
| Punch Capacity: | 15 sheets (based on 20 lb. paper) |
| Max. Binding Length: | 11.81” |
| Binding Capacity: | 9/16” (approx. 120 pages) |
| Depth Margin: | Adjustable (2.5mm, 4.5mm, and 6.5mm) |
| Disengageable Dies: | Fully-disengageable (34 dies) |
| Wire Closer: | Adjustable |
| Dimensions: | 17.13” x 13.19” x 8.07” |
| Net Weight: | 17.4 lbs. |
| Warranty: | 1 years |
